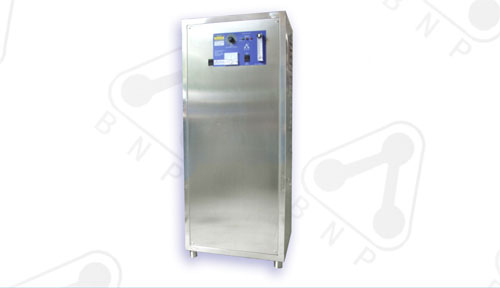

Integrated ozone & oxygen generator

     The series product use oxygen generator in it to adopt oxygen. It use ozone generator produces high density ozone.This machine inside place to have no oil air compressor,percolation device, plug in can immediately produce ozone.
　　Ⅰ、Features：
　　　1、We apply adsorbing media from UOP in the U.S.A. By changing adsorbing pressure (PSA) oxygen generators split oxygen from nitrogen, filtrate out poisonous substance in air, then get high concentration oxygen which is up to medical standard.
　　　2、SOZ Series ozone generators use high reliability 、high efficiency and long life non-hydroxide crystal titanic generating cell, The cell is designed particularly with ozone resistant double pipes. They are cooled by air or cool water.  SOZ Series use high quality components. Intelligent cell design is the first creation in the world.(patented)
　　　3、Adjustable Ozone output, low noise.
　　　4、Easy to operator, product at any moment.
    Ⅱ、Components：
　　　Two generating cells(From UOP in the U.S.A)、Solenoid electric valve(from CKD in Japan)、Power switch board,Separator which gets water from air、 Non-oil air compressor  Discharge cell、stainless casing、current meter、150 fan、flowmeter、ozone adjusting knob
　　 Ⅲ、Data、diagram：

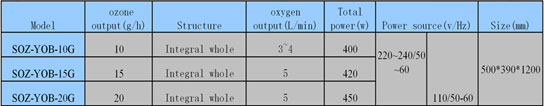

    1、Specification（Mark：the specification maybe changed）
