 PSA oxygen generator

    We apply adsorbing media from UOP in the U.S.A. By changing adsorbing pressure(PSA) ,oxygen generators split oxygen from nitrogen, filtrate out poisonous substance in  air, then get high concentration oxygen which is up to medical standard. PSA oxygen  generators produce low cost oxygen which purity is 95%±3.
    Ⅰ、Features:
   1、Material is air,it need not any other auxiliary material,low power,low cost.
   2、Low working pressure keep it is high reliability、high performance and high  safety.
   3、Adjustable oxygen flow,big oxygen production,low noise.
   4、Easy to operate,product at any moment ,continue to supply oxygen.
    Ⅱ、Componets:
   Two generating cells(From UOP in the U.S.A)
   Solenoid electric valve(from CKD、SMC in Japan,from AIRTAC、SNS in Taiwan)
   Power switch board
   Separator which gets water from air
   Non-oil air compressor(choose fit set by system spec)
  Ⅲ、OW series:

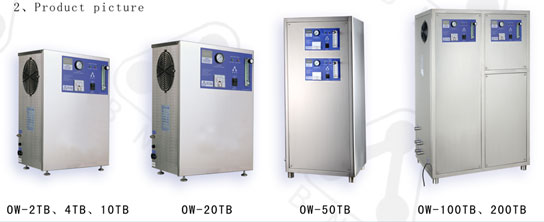

  OW-2TB、 OW-4TB、 OW-10TB、 OW-20TB、 OW-50TB、 OW-100TB
    Ⅳ、Data、diagram:

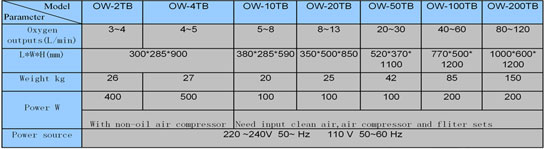

     1、Specification(Mark:the specification maybe changed)
