SOZ series strong ozone generator

     SOZ Series ozone generators use high reliability 、high efficiency and long life non-hydroxide crystal titanic generating cell, The cell is designed particularly with ozone resistant double pipes. They are cooled by air or cool water.
    SOZ Series use high quality components. Intelligent cell design is the first creation in the world.(patented)
   Ⅰ、Function：
    1.Alarm for no ozone,but generator doesn’t stop automatically,when ozone comes out,the generator works normally. His function tells if the discharge cell works well.There is no alarm when no ozone output due to:a)no gas input;b)gas pipe has leakage or wall up.
    2.Alarm for water return. Stop generator, blow with dry air or oxygen then switch on generator again, when alarm stops after 3 seconds, the generator works normally.
    3.Alarm for over temperature and then generator stops because:a)the fan meshwork is walled up;b)over environment temperature.Generator will restart automatically when temperature is below 50℃.
    4.Alarm for PCB failure.
.    Ⅱ、Components：
    Discharge cell、stainless casing、current meter、150 fan、flow meter、
ozone adjusting knob，air cooling below 32G，water cooling up 32G.
     Ⅲ、Features：
    intelligent non-hydroxide crystal titanic structure or non-hydroxide crystal structure ozone generator，Special long life design,High concentration ozone output，Low power、small shape,2 years warranty.
      Ⅳ、Product series：

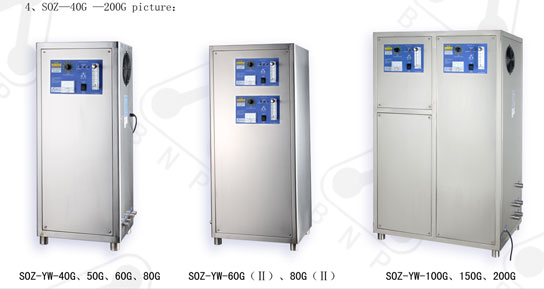

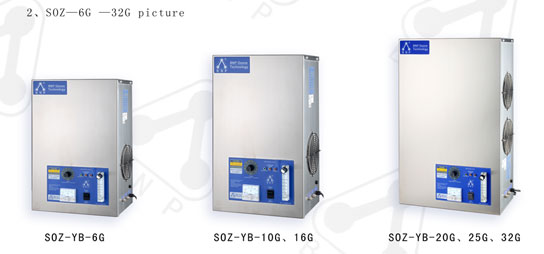

   SOZ-6G、10G、16G、20G、25G、32G、40G、50G、60G、80G、100G、120G、150G、200G、300G、500G、600G、1000G、1500G、2000G……。SOZ-6G-200G have stocks，need order up 200G.

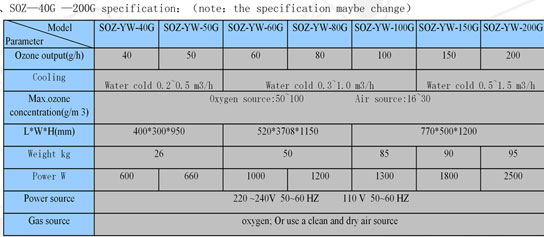

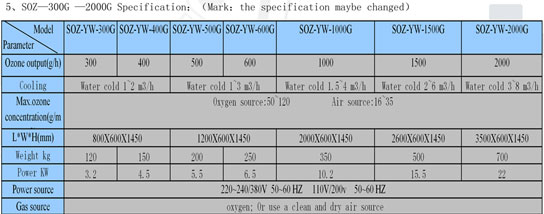

     Ⅴ、：Data、diagram（Mark：Specification、picture maybe changed）

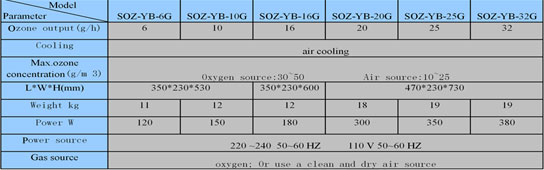

    1、 SOZ—6G —32G specification
